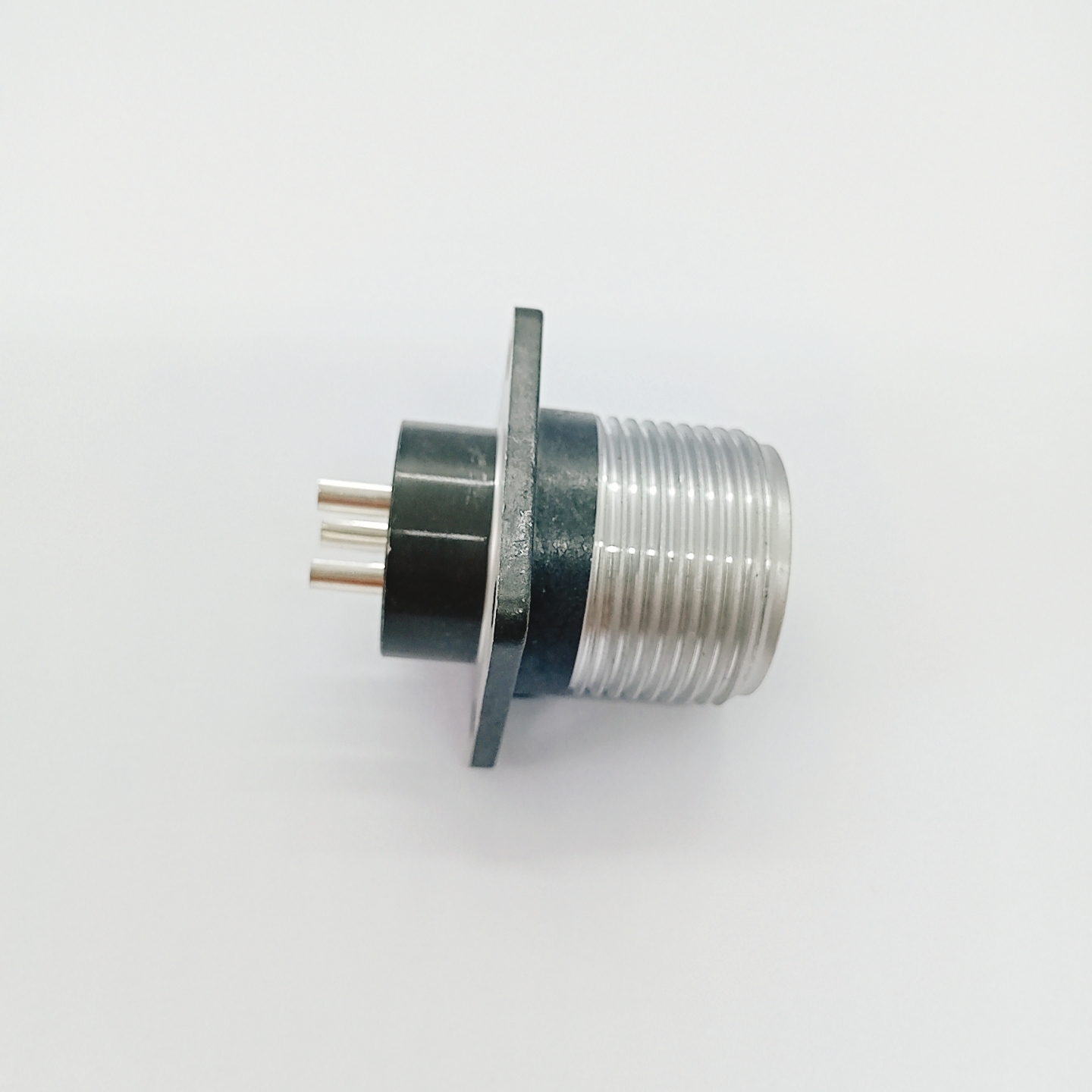

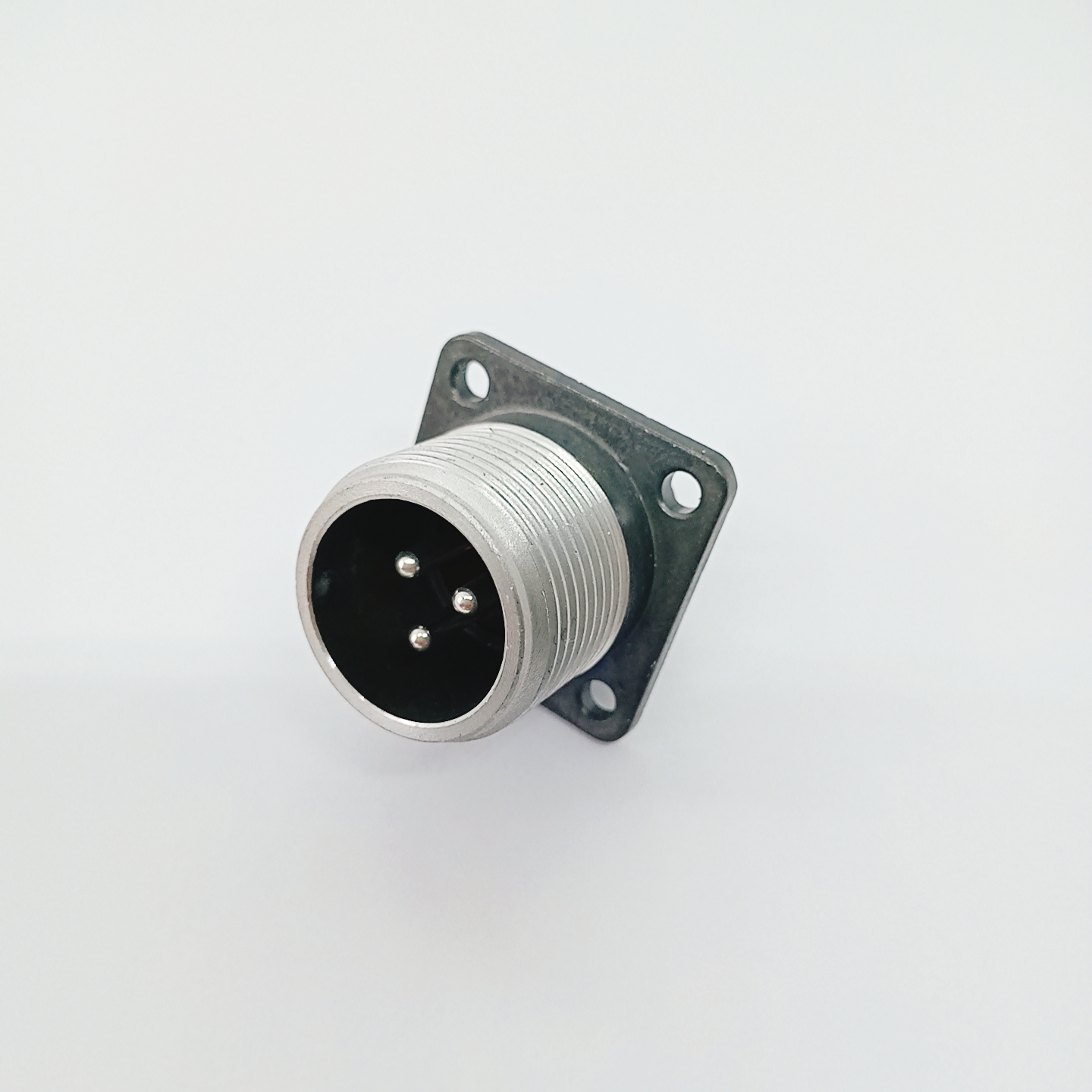

Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
P20J3A is square‑flange straight panel‑mount male receptacle of P‑series thread‑locking circular aviation connector, which mates with P20K3Q cable plug. It adopts 3 solder‑type high‑current contacts rated 25A per contact. Thread‑coupling locking ensures reliable anti‑vibration connection, operating temperature ‑55℃~+70℃ and 500 mating cycles, widely applied for power interconnection of industrial‑control and vehicle‑mounted equipment.
Product display
Product Performance Details
| Product model |
P20J3A |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥500MΩ |
| Contact resistance |
≤5mΩ |
Rated voltage |
250V |
| Insulator material |
High temperature resistant engineering plastics |
Mechanical life |
1000 times |
| Connection method |
Threaded locking type |
Withstand voltage |
1500V AC |
| Working temperature |
-40℃ ~ +105℃ |
Working Current |
10 A |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
