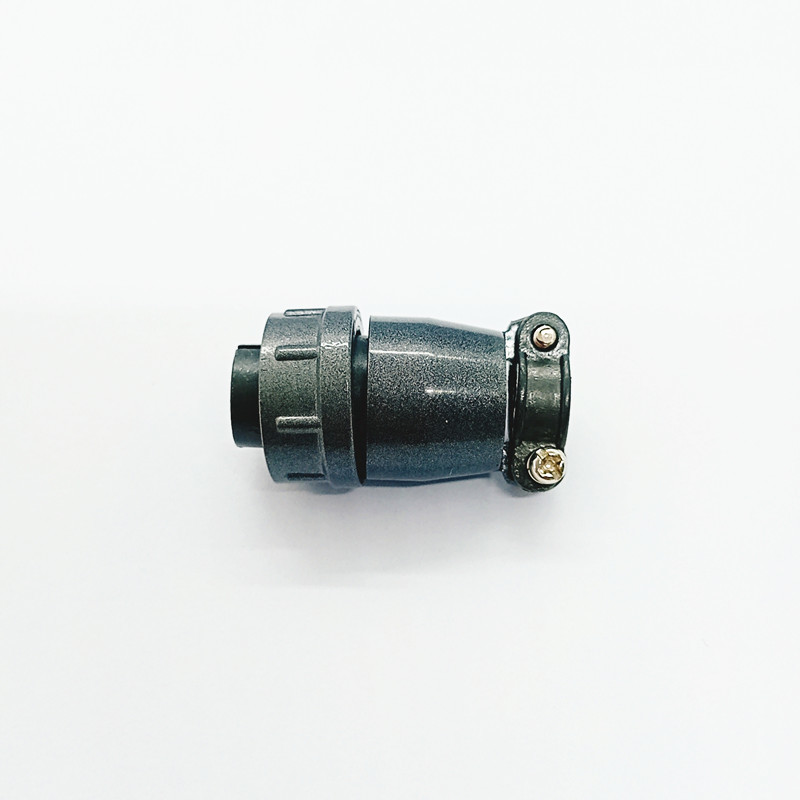

X14‑4P X Series 4 Position Thread Locking Circular Aviation Connector Female Cable Plug Connector
X14‑4P is the female cable plug of X‑series thread‑locking circular aviation connector, mating with X14‑4S panel‑mount socket. Equipped with built‑in cable‑clamp strain relief, it adopts 4 solder contacts with 3A per‑contact rated current. Thread‑in locking provides good anti‑vibration performance, operating temperature ‑55℃~+100℃ and 500 mating cycles, widely used for signal connection of instruments and industrial equipment, and cannot be intermated with XC‑series bayonet connectors.
Product display
Product Performance Details
| Product model |
X14-4P |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥500MΩ |
| Contact resistance |
≤5MΩ |
Working voltage |
500V |
| Rated current |
3A |
Withstand voltage |
1000V |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
