Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight PCB Plug Connector
J30J‑51TJN‑J is a 51‑pin straight PCB plug of J30J Micro‑D subminiature rectangular connector, compliant with GJB2446. It features twisted‑wire gold‑plated contacts, compact high‑density structure, excellent anti‑vibration and anti‑shock performance. The‑J type adopts 1.27×2.54 mm PCB footprint, intermateable with MIL‑DT‑83513 / MDM series. Suitable for aerospace, vehicle‑mounted and industrial high‑reliability electronic systems.
Product display
Product Performance Details
| Product model |
J30J-51TJN-J |
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
500 times |
| Impact |
735m/s2 11ms |
Rated current |
3 A |

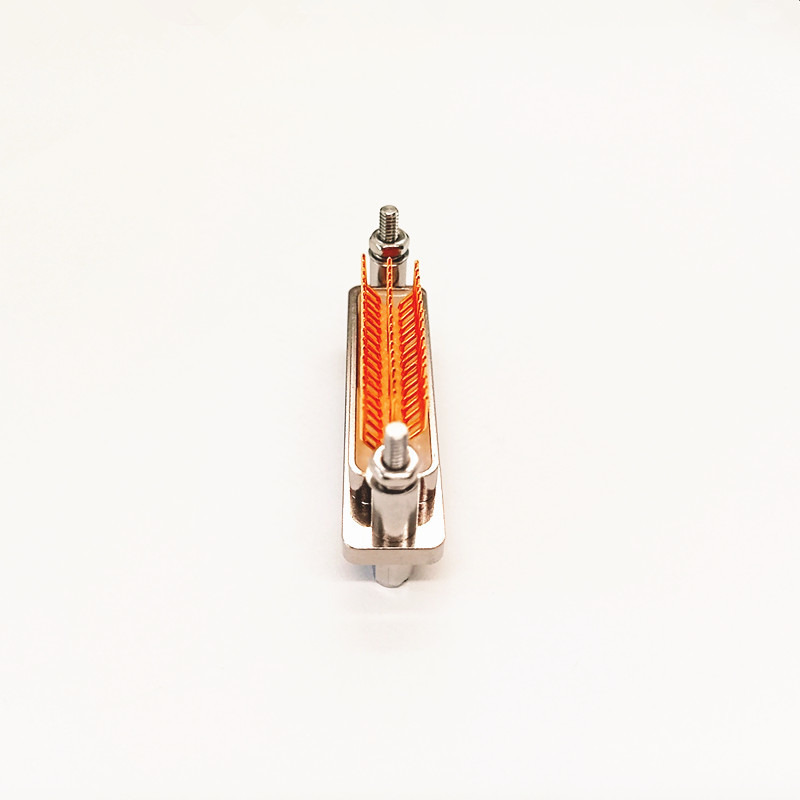

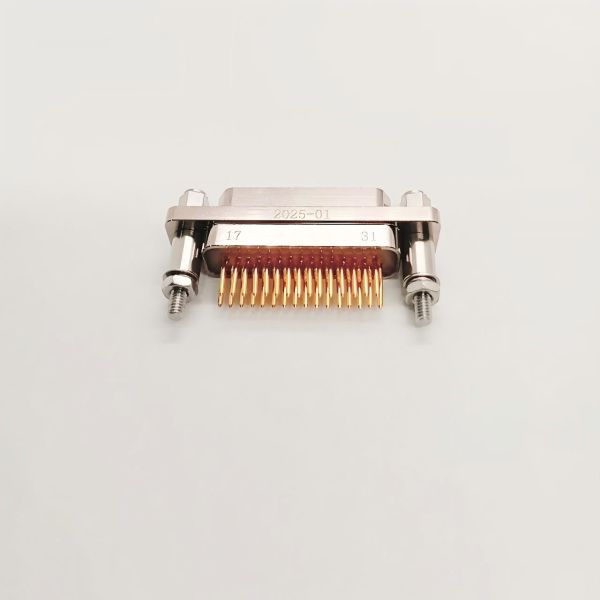

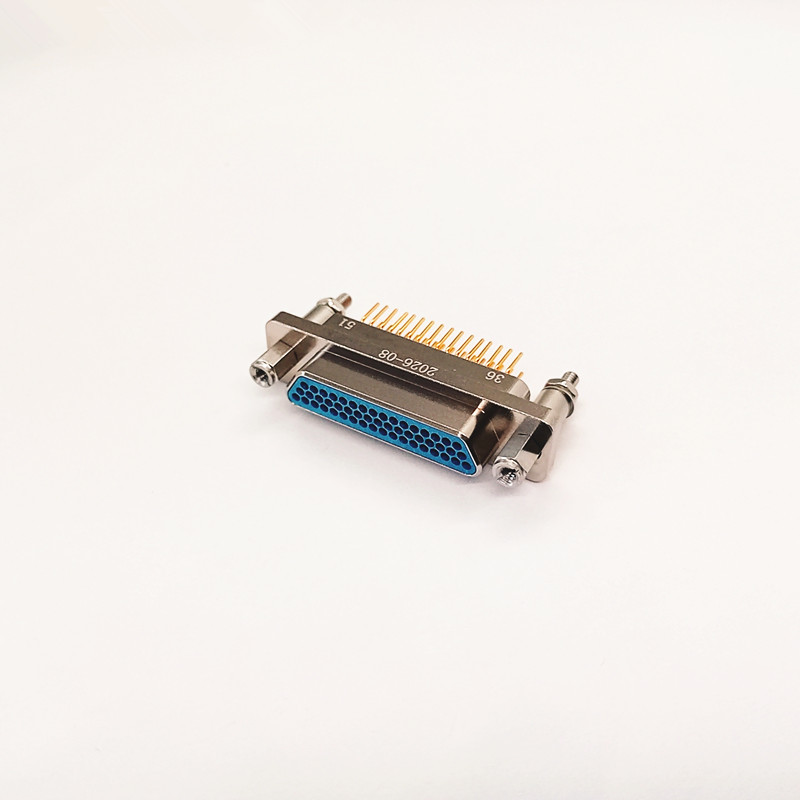

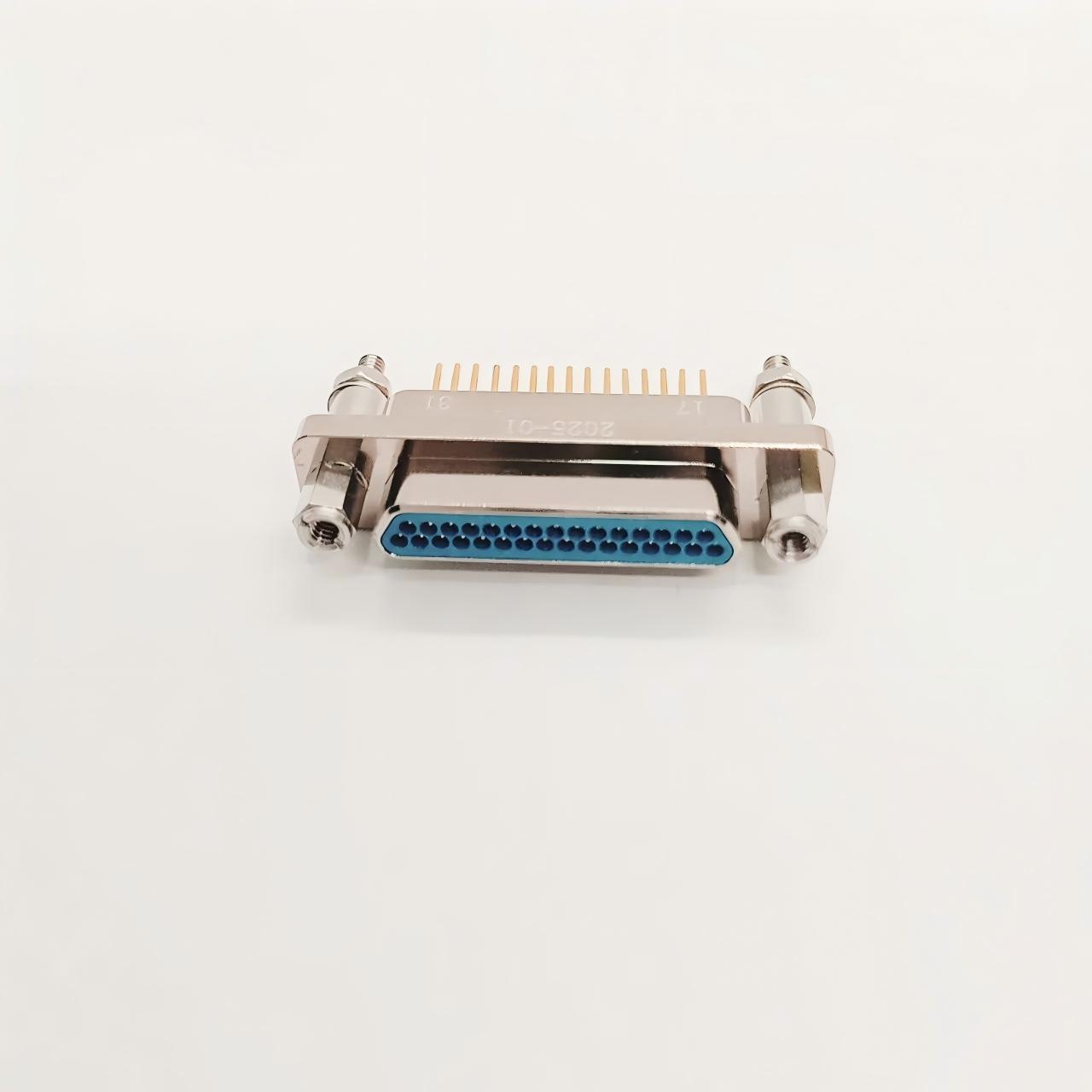

Physical product display

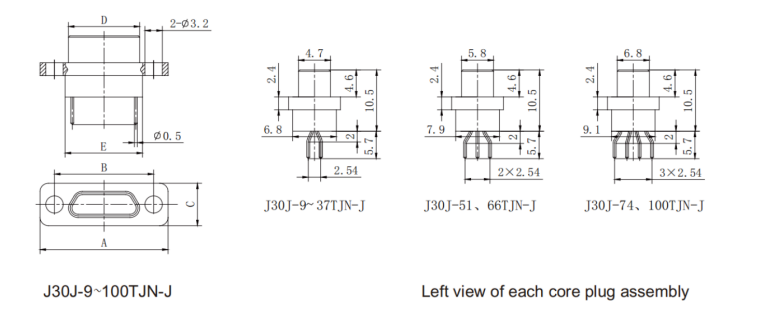

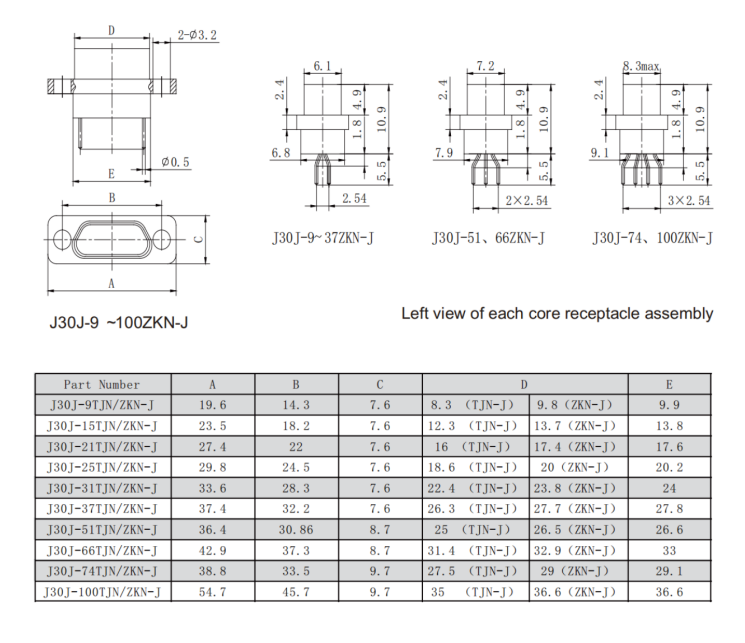

Product external dimensions
Related product recommendations
Product selection reference
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
